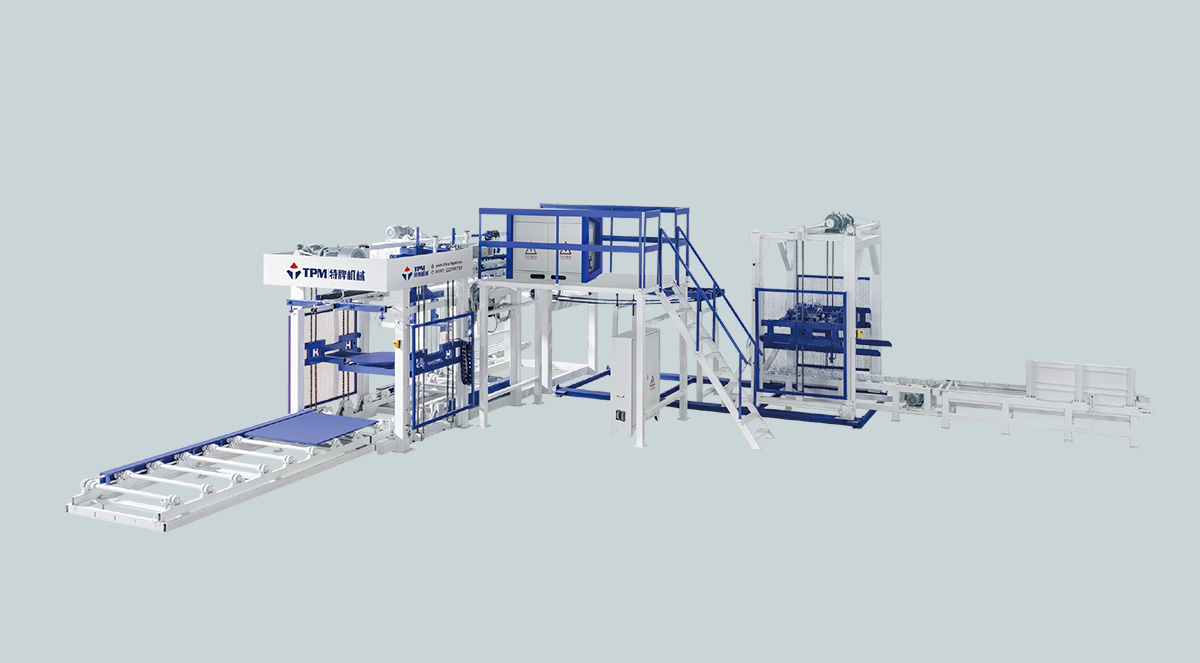

The operation of TPM-SZ1600 offline palletizer plant is fully automatic, it It is used to separate the blocks from pallets, rearrange the blocks to achieve the required palletize dimension. The palletized dimension can be flexi ble, for example, 1000mm ×1000mm × 1600mm, 1100mm ×1100mm × 1600mm or 1200mm ×1200mm × 1600mm. After palletizing, the blocks can be packed manually or packed by automatic film wrapping machine. and transport to the finished products stocking area by forklift. The holes for forklift transport can be reserved automatically.
The complete line is equipped with 4 sets of servo controlled motors, 5 sets of frequency inverter controlled motors, lasers for positioning. Fully automatic controlled by Siemens PLC and Touch Screen, Online trouble shooting can be easily achieved through Internet. Only 1 qualified operator is needed to operate this line, greatly save the labor cost and increase the concrete products quality.
The blocks can be palletized with or without transportation pallets/wooden tray, Multi- dimension for palletizing to utilize the maximum truck capacity.
