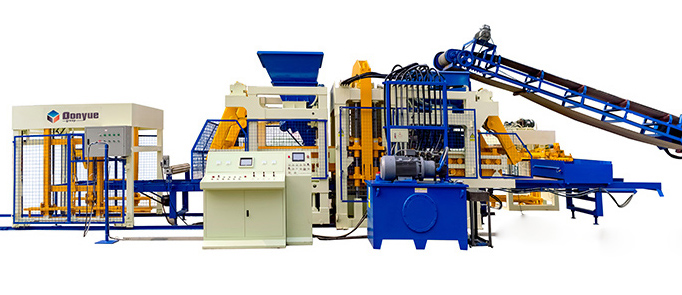

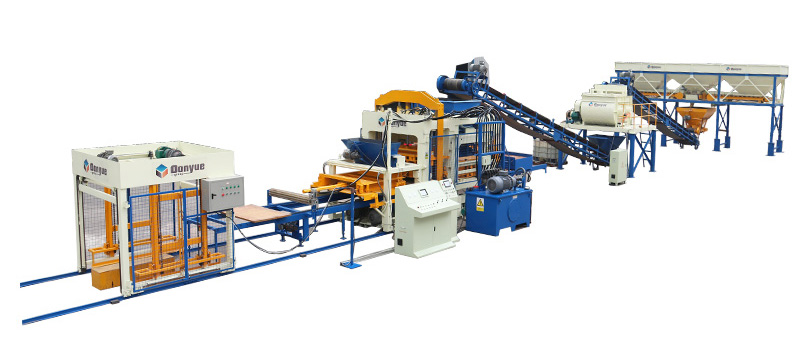

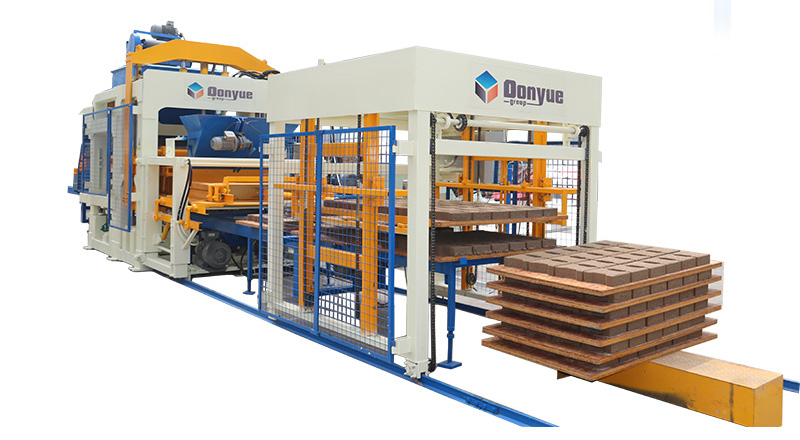

QT18-15
Fully Automatic Brick Making Machine
1. QT18-15 Brick making machine can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2.QT18-15 Brick making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
Product Description
1. Automatic Brick Making Machinery can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2. Automatic Brick Making Machinery adopt hydraulic pressure moulding system, so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
4. Switches will use Japan Omron or France Schneider band, motor will use Siemens or ABB brand.
Product Parameters
The main technical parameter is as following data, details information can be provided.
Dimension of host machine 14000X2350X3800mm Host machine power 116 kw
Weight of host machine 20 Ton Vibration force 200-220KN
Pallet size 1400×1350×32mm Moulding area 1350×1300mm
Workshop area 500 m2 Water consumption 20-25 Ton/day

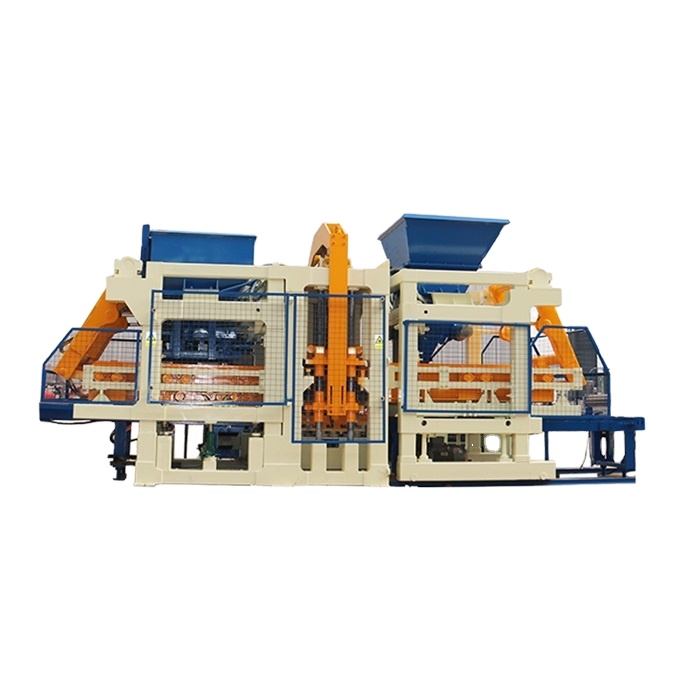

QT15-15
Fully Automatic Block Machine Line Brick Making Machinery
1. fully automatic brick manufacturer can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2.fully automatic brick manufacturer adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3.fully automatic brick manufacturer moulds: Precise line cutting technology and carburizing treatment technology to prolong mould life
and increase precision of the block.

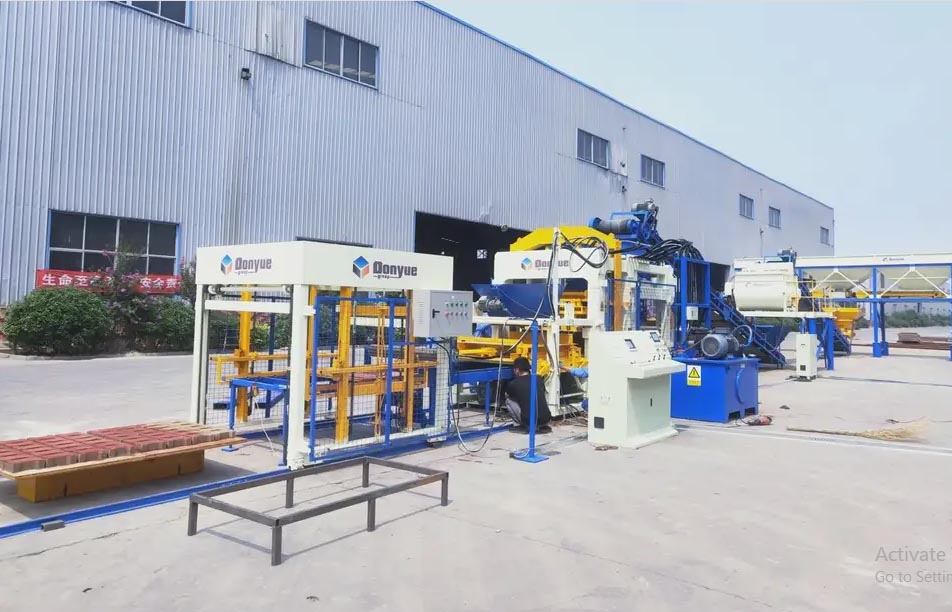

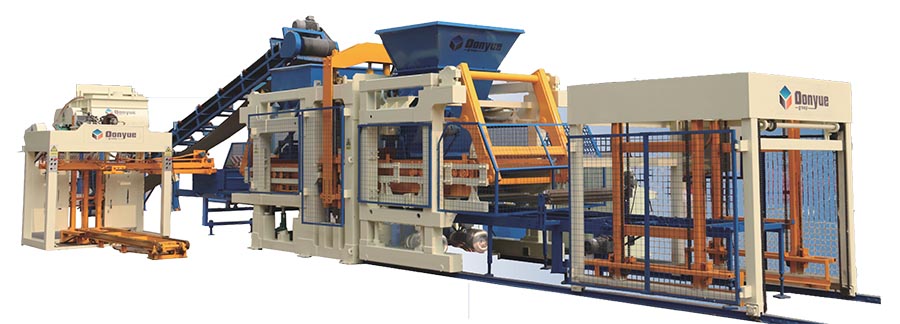

QT10-15
Fully Automatic Concrete Block Making Machine
1. QT10-15 Full automatic block paver brick block making machine can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2. Full automatic block paver brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
Main technical parameters
|
|
Dimension of Host Machine
|
3800x2300x3550MM
|
Host Machine Power
|
51.2kw
|
|
Wight Of host machine
|
11.5Tons
|
Vibration Force
|
90-110KN
|
|
Moldling area
|
1400x800MM
|
Mixer Model
|
JS750
|
|
Water consumption
|
5-6 Ton/ day
|
Pallet Size
|
1300x900x30MM
|
|
Workshop area
|
250-300m2
|
Voltage
|
380/415/440
|
Theoretical Production Capacity
|
|
|
|
|
|
|
|
|
|
|
Multi Hole Brick 240x115x90MM
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

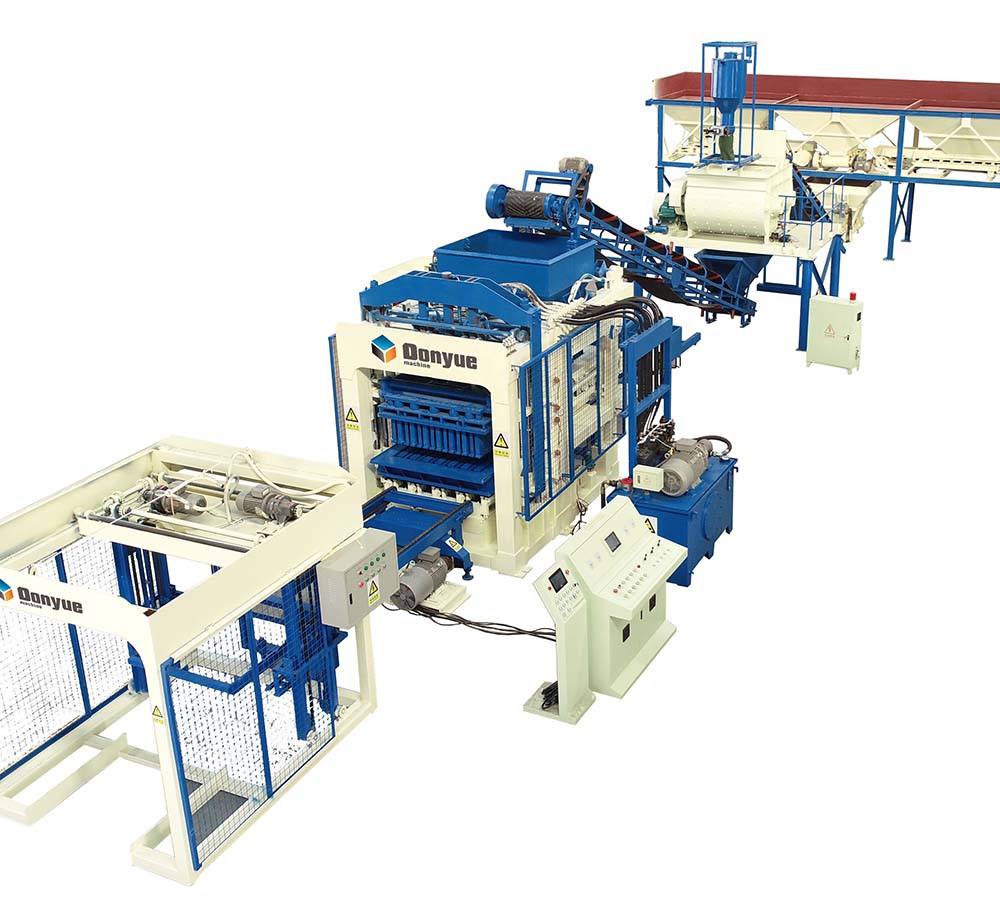

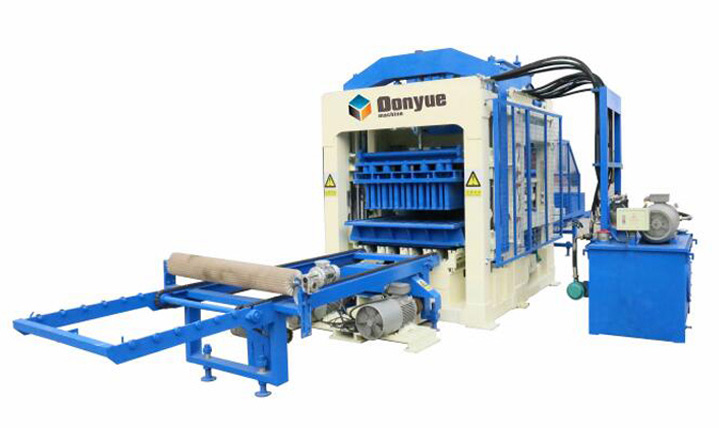

QT8-15
Automatic Brick Making Machine
QT8-15 automatic block production line
1. Full automatic block paver brick block making machine can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2. Full automatic block paver brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
Main technical parameters
|
|
Dimension of Host Machine
|
3800x2200x2750MM
|
Host Machine Power
|
45kw
|
|
Wight Of host machine
|
11.5Tons
|
Vibration Force
|
70-100KN
|
|
Moldling area
|
1196x880MM
|
Mixer Model
|
JS750
|
|
1Water consumption
|
10-15 Ton/ day
|
Pallet Size
|
1050x900x28MM
|
|
Workshop area
|
250-300m2
|
Voltage
|
380/415/440
|
Main technical parameters
|
|
Dimension of Host Machine
|
3800x2200x2750MM
|
Host Machine Power
|
45kw
|
|
Wight Of host machine
|
11.5Tons
|
Vibration Force
|
70-100KN
|
|
Moldling area
|
1196x880MM
|
Mixer Model
|
JS750
|
|
1Water consumption
|
10-15 Ton/ day
|
Pallet Size
|
1050x900x28MM
|
|
Workshop area
|
250-300m2
|
Voltage
|
380/415/440
|

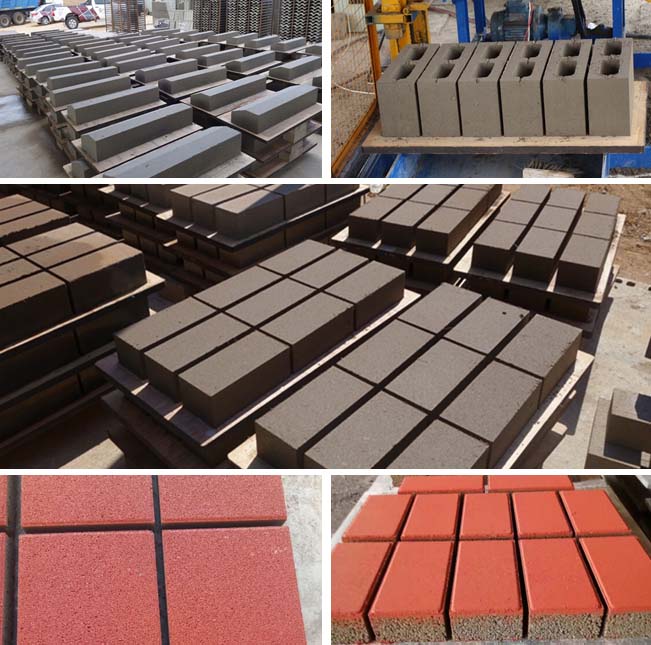

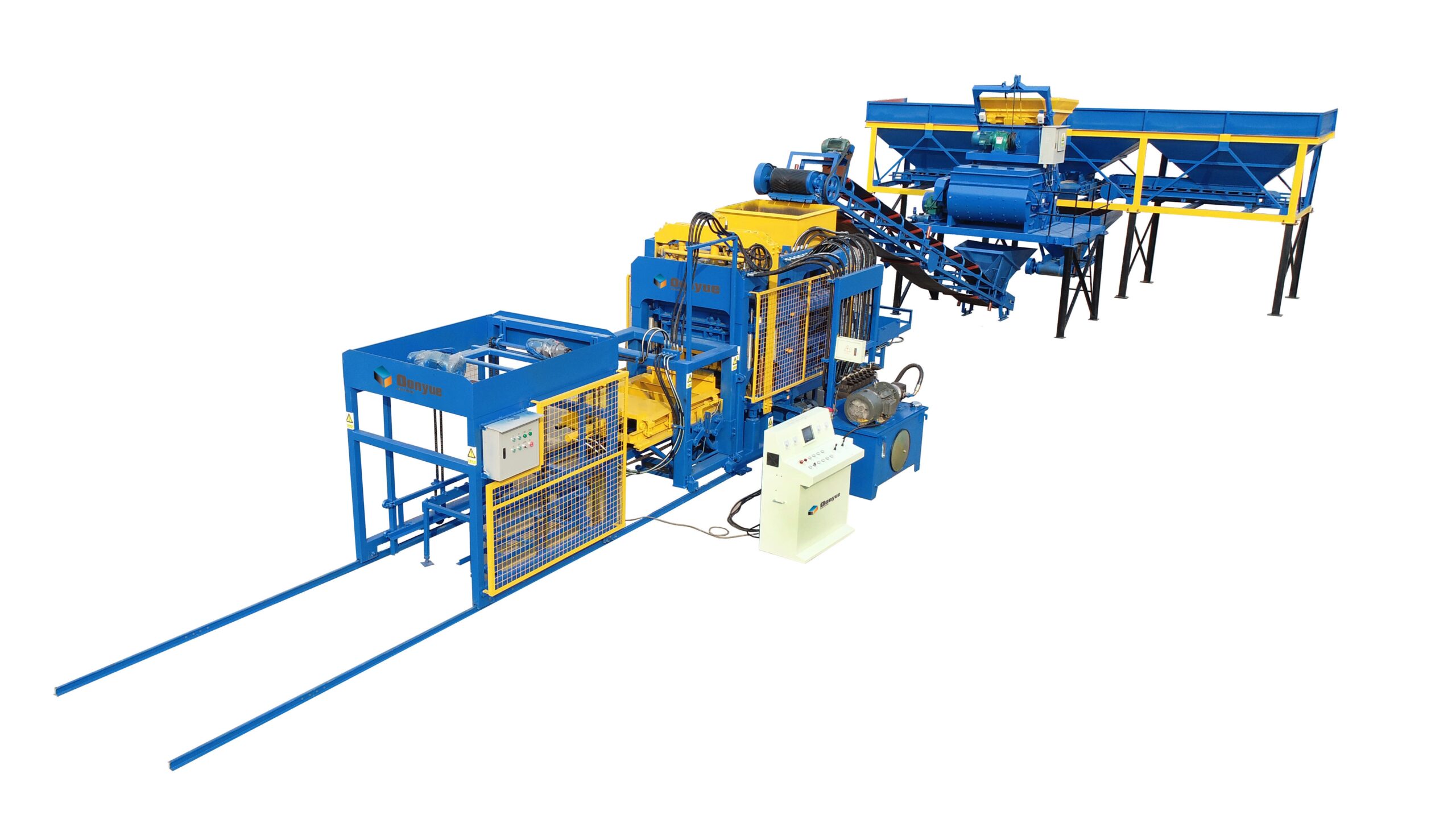

QT6-15
Automatic Brick Machine
1. Full automatic block paver brick block making machine can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2. Full automatic block paver brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
Theoretical Production Capacity
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Host machine size
|
Host machine power
|
Host machine weight
|
|
|
3200*2300*2750mm
|
45kw
|
8.35t
|
1150*720*25
|

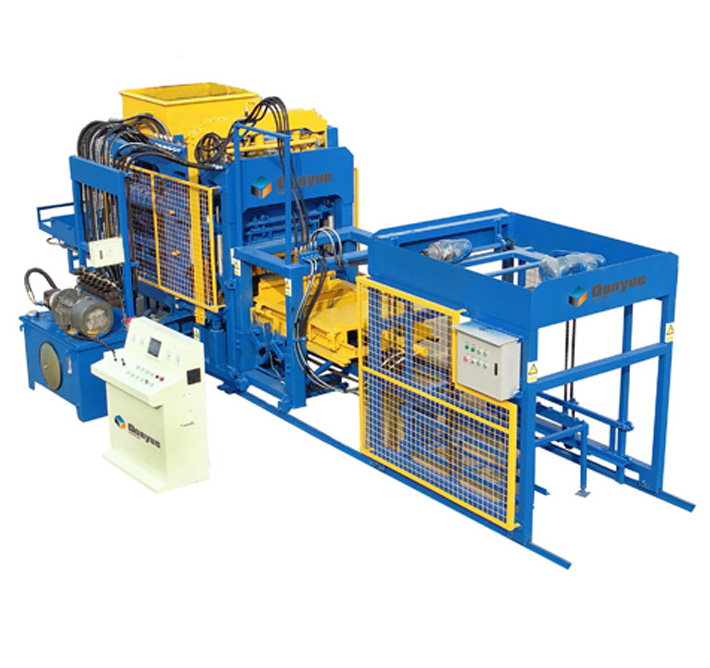

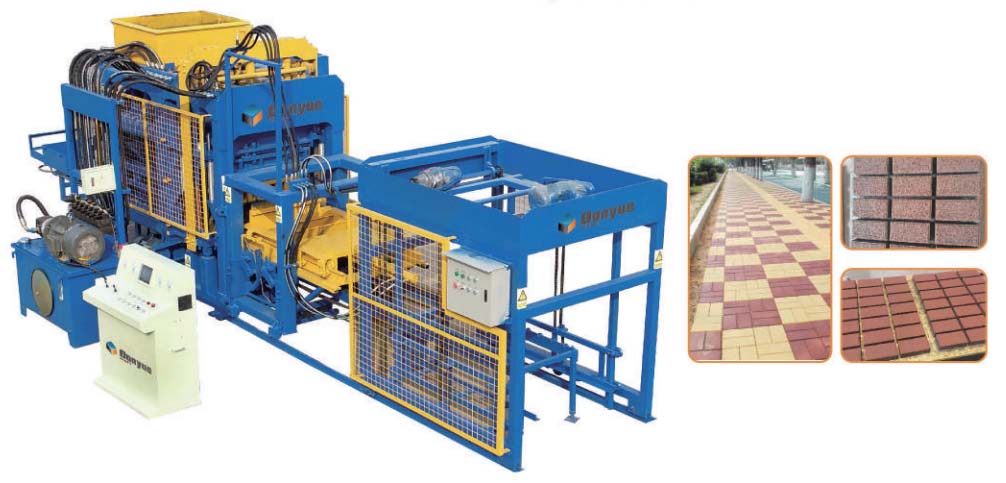

QT6A-15
Automatic Brick Making Machine
1. This machine is multifunctional. Various bricks such as road verge bricks,river channel bricks,slope-protecting bricks,plaza pavement bricks,dock
bricks,grass-planting bricks etc. can be produced only by exchanging its mould.
2.By low frequency material feeding,high frequency vibrating and pressing and vibrating both by table and mould, the concrete can be completely liquidized and air discharged within 2 or 3 seconds, in order to obtain high density and high strength.
3.As the advanced hydraulic ratio control technology is adopted so that the oil pressure of each branch of the circuit can be controlled at will and various bricks with the same high quality can be produced using different raw materials.
4.PLC intelligent control system which equipped with data input and output device,advanced safety logic and fault self-diagnosis system is adopted in full of the production procedure.
5. It can produce all kinds of hollow blocks , solid bricks ,color paving bricks,only by changing different moulds.
Main technical Parameters
| Dimension of host machine |
2700*1800*2600 |
Host machine power |
26KW |
| Moulding area |
1016×570mm |
Vibration force |
40-60KN |
| The size of the pallet |
1010×580×20/25mm |
Mixer model |
JS500 |
| Weight of the host machine |
7.6T |
General water Consumption |
5T/every day |
Production Capacity
| Pic |
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
 |
400X200X200 |
4 |
600-960 |
4800-7680 |
|
400X100X200 |
14 |
1200-1920 |
9600-15360 |
 |
200X100X60 |
28 |
4200-4500 |
15360 |
 |
200X165X60 |
8 |
1200-1500 |
9600 |

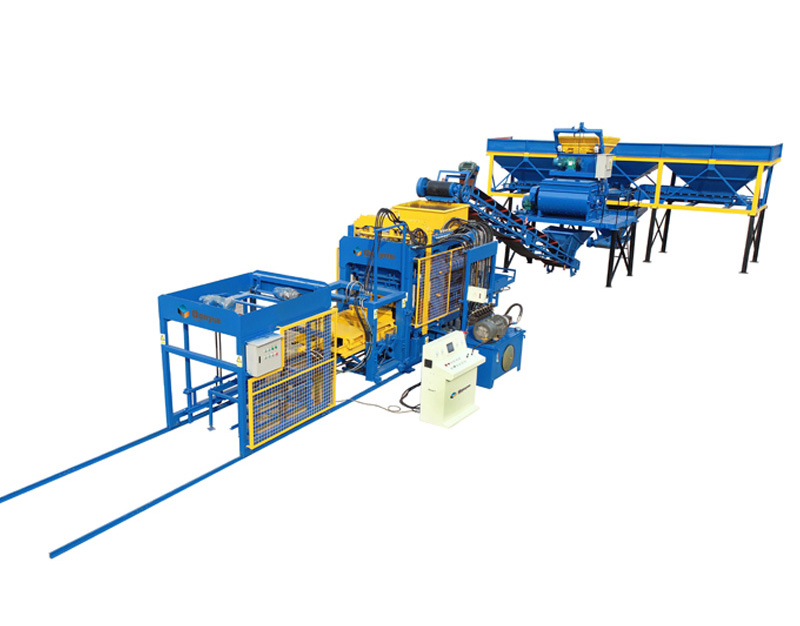

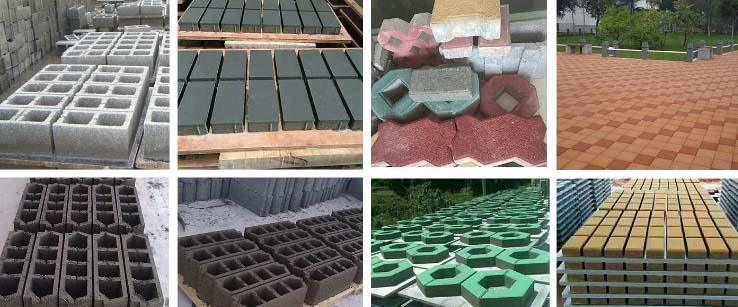

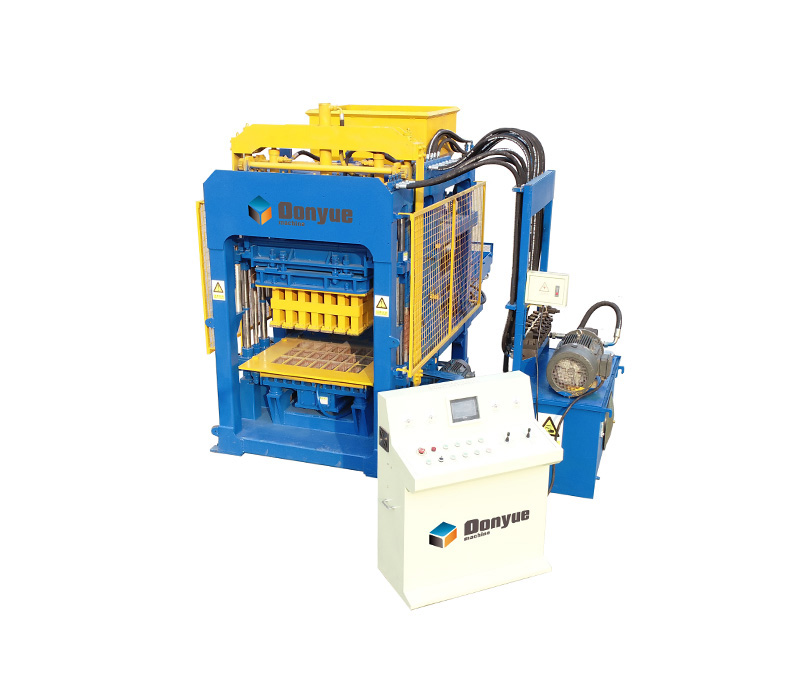

QT5-15
Automatic Brick Machine
1. Full automatic block paver brick block making machine can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2. Full automatic block paver brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
Theoretical Production Capacity
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

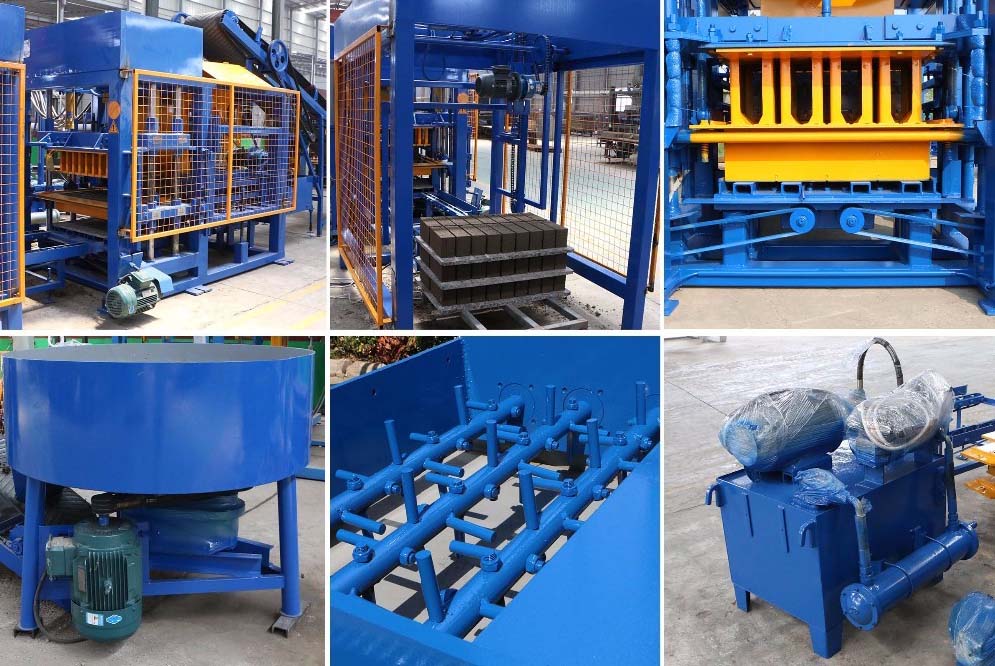

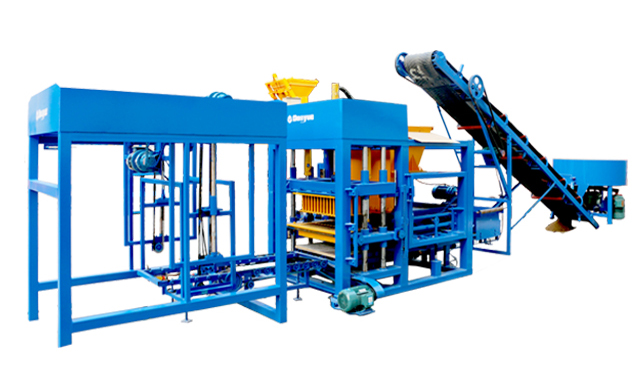

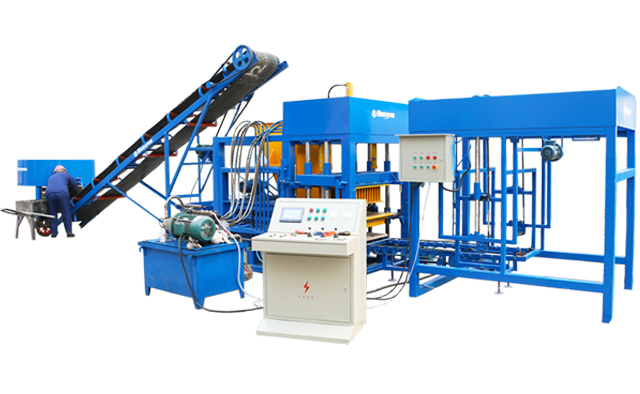

QT4-15
Automatic Brick Machine
QT4-15 block making machine is one of the dongyue machinery co., LTD., brick machine equipment, the equipment structure is simple and practical, outlook is novel and attractive, in addition to produce permeable brick, it is particularly suited to the production of standard bricks, replacement of mold can produce many kinds of paving brick, hollow brick, curb stone etc.
MAIN TECHNICAL PARAMETERS FOR QT4-15 BLOCK MACHINE LINE
|
Dimension of host machine
|
3700x2100x2300mm
|
Host machine power
|
16.35KW
|
|
Mould period
|
20s
|
Vibration force
|
35.5KN
|
|
The size of the pallet
|
850x550x30mm
|
Total power
|
23.7KW
|
|
|
3T
|
Mixer model
|
JQ500
|
|
Size (L x W x H)
|
Pcs/Mould
|
Pcs/Hr
|
Pcs/8 Hr
|
|
400X100X200mm
|
7
|
1008
|
8064
|
|
400X150X200mm
|
5
|
720
|
5760
|
|
400X200X200mm
|
4
|
576
|
4608
|
|
400X250X200mm
|
3
|
432
|
3456
|
|
230X110X70mm
|
20
|
1880
|
23040
|

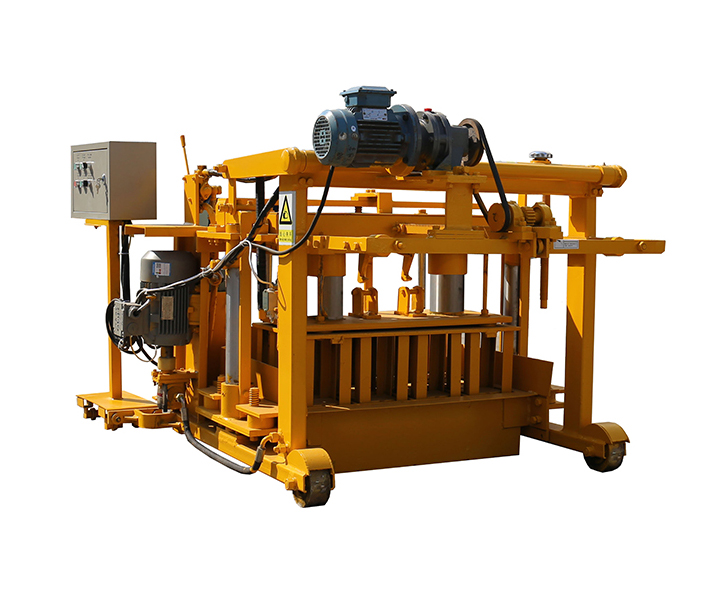

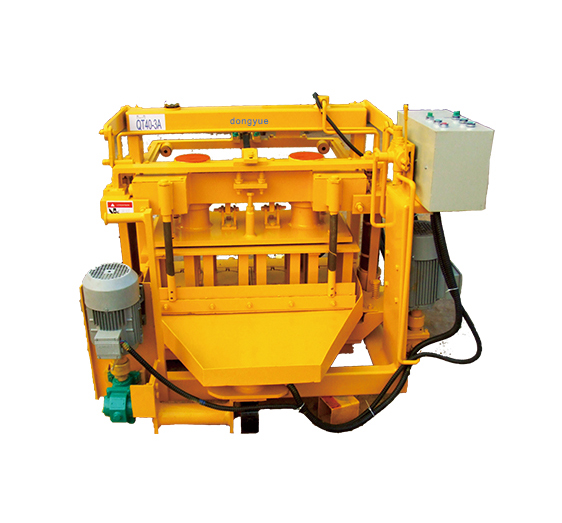

QT40-3A
Mobile Block Making Machine
Dongyue Machinery Group is leading block machine manufacture in China. Our main products are Various automatic and manual concrete block machine,AAC Block machine,ALC block machine,Sand lime block machine and pressure vessel.
|
Host machine power
|
5.2KW
|
|
Moulding cycle
|
25S
|
|
Dimension of host machine
|
1800×1400×1100mm
|
|
Pallet size
|
No need pallets
|
|
Weight of the host machine
|
0.8T
|
|
Vibration force
|
35.5KN
|
|
Mixer model
|
JD350
|
|
Voltage
|
380V
|
|
General water Consumption
|
2T/every day
|
|
Workers
|
2
|
|
Workshop area
|
50m2
|
|
Product
|
Hollow 400X200X200mm
|
4 pcs/mould
|
4500/8hours
|
|
Standard
240X115X53mm
|
16pcs/mould
|
15000/8hours
|
|
Hollow
400X150X200mm
|
5 pcs/mould
|
6000/8hours
|
