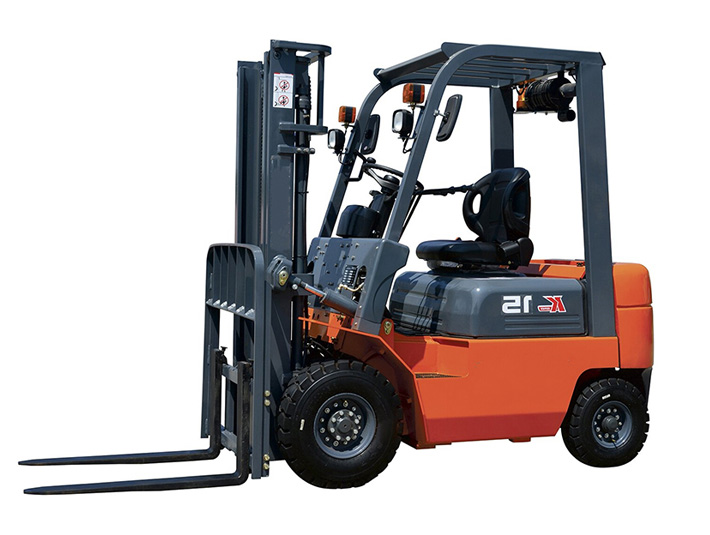

1.5 Ton
2WD Diesel Forklift
The appearance is simple, generous and beautiful;The wide-view gantry design makes the driver’s vision wider;Optional casting steering axle, low maintenance cost later.The design of the high-top large-diameter air intake system can keep the engine away from dust.effectively exert the engine .performance, and improve the service life.
| Item |
unit |
1.5T |
| Load capacity |
kg |
1500 |
| Lift height |
mm |
3000 |
| Load center |
mm |
500 |
| Door trame angle |
degree |
6-12° |
| Gradient Full loadEmpty load |
% |
2023/10/20 |
| Full length(without fork) |
mm |
2105 |
| Width |
mm |
1120 |
| height |
mm |
1986 |
| The goods fork length |
mm |
920 |
| Furcation length |
mm |
772 |
| Front tyre |
|
6.50-10 |
| rear tire |
|
5.00-8 |
| wheel base |
mm |
1380 |
| front gauge |
mm |
960 |
| track rear |
mm |
929 |
| groubd clearance under mast |
mm |
110 |
| front overhang |
mm |
415 |
| rear overhang |
mm |
430 |
| Net weight |
KG |
2700 |
| accumalator |
V/Ah |
12/80 |
| engine power |
KW |
33.5 |
2 Ton
2WD Diesel Forklift
The appearance is simple, generous and beautiful;The wide-view gantry design makes the driver’s vision wider;Optional casting steering axle, low maintenance cost later.The design of the high-top large-diameter air intake system can keep the engine away from dust.effectively exert the engine performance, and improve the service life.
| Item |
unit |
2T |
| Load capacity |
kg |
2000 |
| Lift height |
mm |
3000 |
| Load center |
mm |
500 |
| Door trame angle |
degree |
6-12° |
| Gradient Full loadEmpty load |
% |
15/20 |
| Full length(without fork) |
mm |
2282 |
| Width |
mm |
1180 |
| height |
mm |
2085 |
| The goods fork length |
mm |
1070 |
| Furcation length |
mm |
772 |
| Front tyre |
|
7.00-12 |
| rear tire |
|
6.00-9 |
| wheel base |
mm |
1500 |
| front gauge |
mm |
972 |
| track rear |
mm |
954 |
| groubd clearance under mast |
mm |
140 |
| front overhang |
mm |
477 |
| rear overhang |
mm |
430 |
| Net weight |
KG |
3340 |
| accumalator |
V/Ah |
12/80 |
| engine power |
KW |
33.5 |

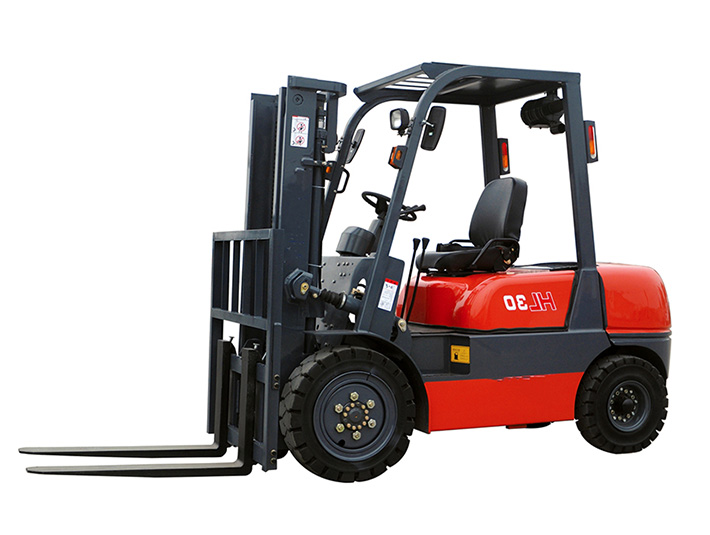

3 Ton
2WD Diesel Forklift
The appearance is simple, generous and beautiful;The wide-view gantry design makes the driver’s vision wider;Optional casting steering axle, low maintenance cost later.The design of the high-top large-diameter air intake system can keep the engine away from dust.effectively exert the engine performance, and improve the service life.
| Item |
unit |
3T |
| Load capacity |
kg |
3000 |
| Lift height |
mm |
3000 |
| Load center |
mm |
500 |
| Door trame angle |
degree |
6-12° |
| Gradient Full loadEmpty load |
% |
15/20 |
| Full length(without fork) |
mm |
2650 |
| Width |
mm |
1250 |
| height |
mm |
2115 |
| The goods fork length |
mm |
1220 |
| Furcation length |
mm |
940 |
| Front tyre |
|
28*9-15 |
| rear tire |
|
6.5-10 |
| wheel base |
mm |
1700 |
| front gauge |
mm |
1110 |
| track rear |
mm |
985 |
| groubd clearance under mast |
mm |
170 |
| front overhang |
mm |
490 |
| rear overhang |
mm |
545 |
| Net weight |
KG |
4320 |
| accumalator |
V/Ah |
12/80 |
| engine power |
KW |
37 |

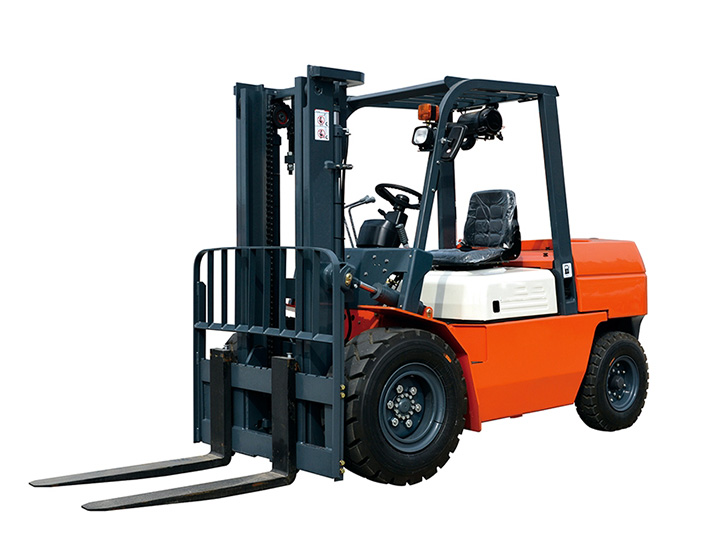

3.5 Ton
2WD Diesel Forklift
The appearance is simple, generous and beautiful;The wide-view gantry design makes the driver’s vision wider;Optional casting steering axle, low maintenance cost later.The design of the high-top large-diameter air intake system can keep the engine away from dust.effectively exert the engine performance, and improve the service life.
| Item |
unit |
3.5T |
| Load capacity |
kg |
3500 |
| Lift height |
mm |
3000 |
| Load center |
mm |
500 |
| Door trame angle |
degree |
6-12° |
| Gradient Full loadEmpty load |
% |
15/20 |
| Full length(without fork) |
mm |
2650 |
| Width |
mm |
1250 |
| height |
mm |
2115 |
| The goods fork length |
mm |
1220 |
| Furcation length |
mm |
940 |
| Front tyre |
|
28*9-15 |
| rear tire |
|
6.5-10 |
| wheel base |
mm |
1700 |
| front gauge |
mm |
1110 |
| track rear |
mm |
985 |
| groubd clearance under mast |
mm |
170 |
| front overhang |
mm |
490 |
| rear overhang |
mm |
560 |
| Net weight |
KG |
4670 |
| accumalator |
V/Ah |
12/80 |
| engine power |
KW |
37 |

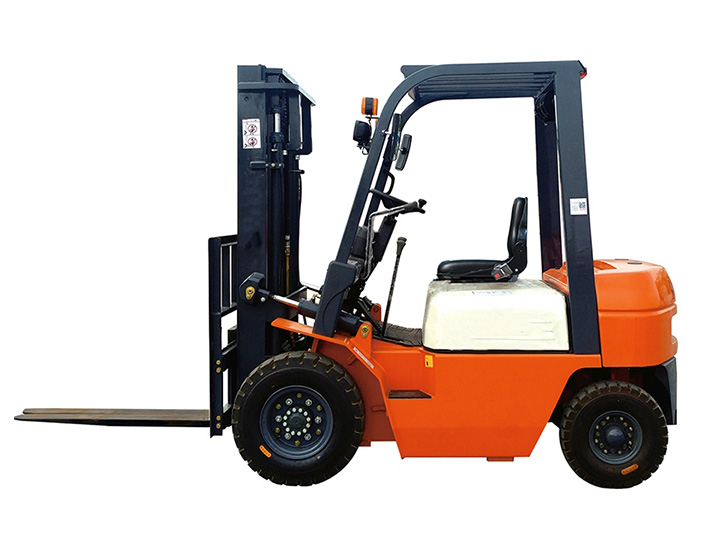

4 Ton
2WD Diesel Forklift
The appearance is simple, generous and beautiful;The wide-view gantry design makes the driver’s vision wider;Optional casting steering axle, low maintenance cost later.The design of the high-top large-diameter air intake system can keep the engine away from dust.effectively exert the engine performance, and improve the service life.
| Item |
unit |
4T |
| Load capacity |
kg |
4000 |
| Lift height |
mm |
3000 |
| Load center |
mm |
500 |
| Door trame angle |
degree |
6-12° |
| Gradient Full loadEmpty load |
% |
15/20 |
| Full length(without fork) |
mm |
3280 |
| Width |
mm |
1500 |
| height |
mm |
2300 |
| The goods fork length |
mm |
1220 |
| Furcation length |
mm |
1200 |
| Front tyre |
|
300-15 |
| rear tire |
|
7.00-12 |
| wheel base |
mm |
2100 |
| front gauge |
mm |
1190 |
| track rear |
mm |
1050 |
| groubd clearance under mast |
mm |
215 |
| front overhang |
mm |
580 |
| rear overhang |
mm |
535 |
| Net weight |
KG |
6100 |
| accumalator |
V/Ah |
24/80 |
| engine power |
KW |
61 |

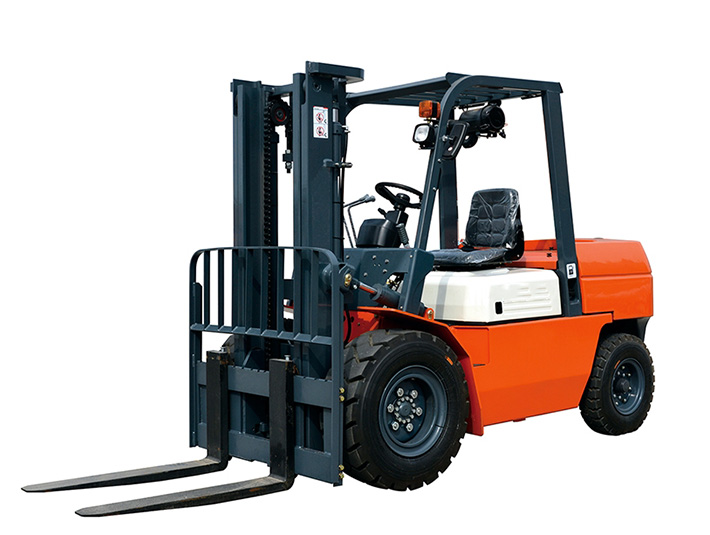

4.5 Ton
2WD Diesel Forklift
The appearance is simple, generous and beautiful;The wide-view gantry design makes the driver’s vision wider;Optional casting steering axle, low maintenance cost later.The design of the high-top large-diameter air intake system can keep the engine away from dust.effectively exert the engine performance, and improve the service life.
| Item |
unit |
4..5T |
| Load capacity |
kg |
4500 |
| Lift height |
mm |
3000 |
| Load center |
mm |
500 |
| Door trame angle |
degree |
6-12° |
| Gradient Full loadEmpty load |
% |
15/20 |
| Full length(without fork) |
mm |
3280 |
| Width |
mm |
1500 |
| height |
mm |
2300 |
| The goods fork length |
mm |
1220 |
| Furcation length |
mm |
1200 |
| Front tyre |
|
300-15 |
| rear tire |
|
7.00-12 |
| wheel base |
mm |
2100 |
| front gauge |
mm |
1190 |
| track rear |
mm |
1050 |
| groubd clearance under mast |
mm |
215 |
| front overhang |
mm |
580 |
| rear overhang |
mm |
535 |
| Net weight |
KG |
6500 |
| accumalator |
V/Ah |
24/80 |
| engine power |
KW |
61 |

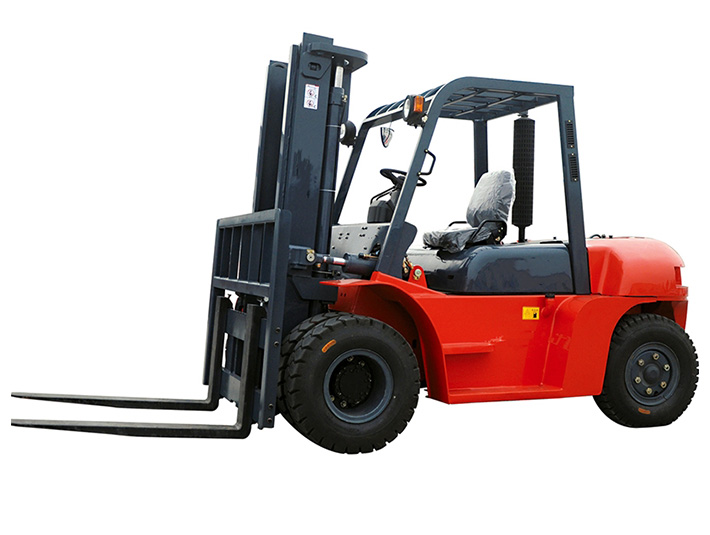

5 Ton
2WD Diesel Forklift
The appearance is simple, generous and beautiful;The wide-view gantry design makes the driver’s vision wider;Optional casting steering axle, low maintenance cost later.The design of the high-top large-diameter air intake system can keep the engine away from dust.effectively exert the engine performance, and improve the service life.
| Item |
unit |
5.0T |
| Load capacity |
kg |
5000 |
| Lift height |
mm |
3000 |
| Load center |
mm |
500 |
| Door trame angle |
degree |
6-12° |
| Gradient Full loadEmpty load |
% |
15/20 |
| Full length(without fork) |
mm |
3280 |
| Width |
mm |
1500 |
| height |
mm |
2300 |
| The goods fork length |
mm |
1220 |
| Furcation length |
mm |
1200 |
| Front tyre |
|
300-15 |
| rear tire |
|
7.00-12 |
| wheel base |
mm |
2100 |
| front gauge |
mm |
1190 |
| track rear |
mm |
1050 |
| groubd clearance under mast |
mm |
215 |
| front overhang |
mm |
580 |
| rear overhang |
mm |
535 |
| Net weight |
KG |
6800 |
| accumalator |
V/Ah |
24/80 |
| engine power |
KW |
61 |

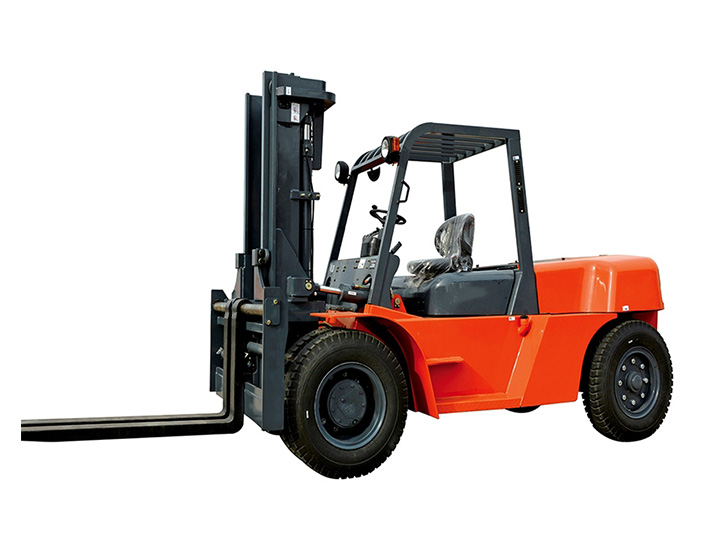

7 Ton
2WD Diesel Forklift
The appearance is simple, generous and beautiful;The wide-view gantry design makes the driver’s vision wider;Optional casting steering axle, low maintenance cost later.The design of the high-top large-diameter air intake system can keep the engine away from dust.effectively exert the engine performance, and improve the service life.
| Item |
unit |
7.0T |
| Load capacity |
kg |
7000 |
| Lift height |
mm |
3000 |
| Load center |
mm |
500 |
| Door trame angle |
degree |
6-12° |
| Gradient Full loadEmpty load |
% |
15/20 |
| Full length(without fork) |
mm |
3680 |
| Width |
mm |
1970 |
| height |
mm |
2500 |
| The goods fork length |
mm |
1220 |
| Furcation length |
mm |
1200 |
| Front tyre |
|
8.25-15-14PR |
| rear tire |
|
8.25-15-14PR |
| wheel base |
mm |
2250 |
| front gauge |
mm |
1190 |
| track rear |
mm |
1050 |
| groubd clearance under mast |
mm |
230 |
| front overhang |
mm |
580 |
| rear overhang |
mm |
535 |
| Net weight |
KG |
9600 |
| accumalator |
V/Ah |
24/80 |
| engine power |
KW |
72 |

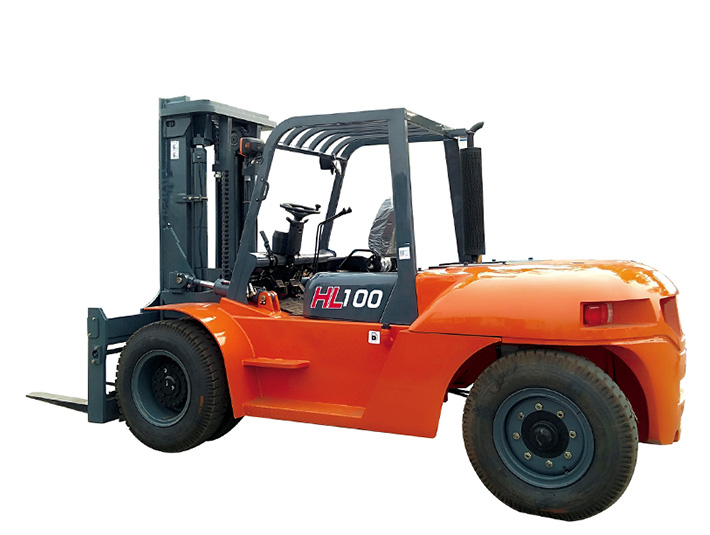

10 Ton
2WD Diesel Forklift
The appearance is simple, generous and beautiful;The wide-view gantry design makes the driver’s vision wider;Optional casting steering axle, low maintenance cost later.The design of the high-top large-diameter air intake system can keep the engine away from dust.effectively exert the engine performance, and improve the service life.
| Item |
unit |
10T |
| Load capacity |
kg |
10000 |
| Lift height |
mm |
3000 |
| Load center |
mm |
500 |
| Door trame angle |
degree |
6-12° |
| Gradient Full loadEmpty load |
% |
15/20 |
| Full length(without fork) |
mm |
4277 |
| Width |
mm |
2245 |
| height |
mm |
2570 |
| The goods fork length |
mm |
1220 |
| Furcation length |
mm |
1200 |
| Front tyre |
|
9.00-20NHS |
| rear tire |
|
9.00-20NHS |
| wheel base |
mm |
2800 |
| front gauge |
mm |
2500 |
| track rear |
mm |
1050 |
| groubd clearance under mast |
mm |
215 |
| front overhang |
mm |
580 |
| rear overhang |
mm |
535 |
| Net weight |
KG |
6800 |
| accumalator |
V/Ah |
24/80 |
| engine power |
KW |
78 |
